WSMD1812貼片可恢復(fù)保險(xiǎn)絲

  • 2022-12-30 16:47:32
  • 0

貼片自恢保險(xiǎn)絲|  SMD PTC FUSE

貼片| SMD

型號(hào) | model: WSMD1812




Specification Sheet

Terminal Pad Solderability:
Meets EIA Specification RS 186-9E And ANSI/J-STD-002 Category 3.
Terminal PAD Materials: Tin-Plated Nickel-copper
Lead-Free,RoHS Compliant
Marking:
R ROHS
1 010Part Identification

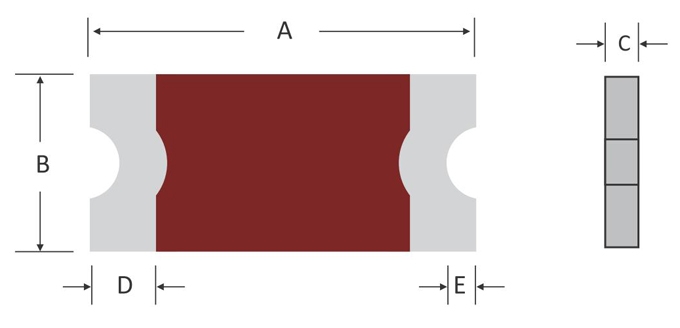

TABLEI.DIMENSIONS

MODEL A
B
C
D E
MIN MAX MIN MAX MIN MAX MIN MAX
WSMD1812R010SF 4.37 4.73 3.07 3.41 0.50 1.00 0.30 0.25
WSMD1812R014SF 4.37 4.73 3.07 3.41 0.50 1.00 0.30 0.25
WSMD1812R020SF 4.37 4.73 3.07 3.41 0.50 1.30 0.30 0.25
WSMD1812R030SF 4.37 4.73 3.07 3.41 0.50 1.00 0.30 0.25
WSMD1812R050SF 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.25
WSMD1812R050SF 33V 4.37 4.73 3.07 3.41 0.70 1.30 0.30 0.25
WSMD1812R050SF-60V 4.37 4.73 3.07 3.41 1.10 1.80 0.30 0.25
WSMD1812R075SF 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.25
WSMD1812R110SF 4.37 4.73 3.07 3.41 0.40 0.90 0.30 0.25
WSMD1812R110SF-16V 4.37 4.73 3.07 3.41 0.60 1.30 0.30 0.25
WSMD1812R125SF 4.37 4.73 3.07 3.41 0.60 1.30 0.30 0.25
WSMD1812R150SF 4.37 4.73 3.07 3.41 0.40 1.20 0.30 0.25
WSMD1812R150SF-16V 4.37 4.73 3.07 3.41 0.40 1.20 0.30 0.25
WSMD1812R160SF 4.37 4.73 3.07 3.41 0.40 1.30 0.30 0.25
WSMD1812R200SF 4.37 4.73 3.07 3.41 0.50 1.50 0.30 0.25
WSMD1812R260SF 4.37 4.73 3.07 3.41 0.50 1.50 0.30 0.25
WSMD1812R300SF 4.37 4.73 3.07 3.41 0.50 1.50 0.30 0.25
WSMD1812R350SF 4.37 4.73 3.07 3.41 0.50 1.50 0.30 0.25

Performance Specification

Pd Typ.
 Maximum Time      To Trip Resistance Agency Approval
(W) Current(A) Time(Sec) R1 Min(Ω) R1 Max(Ω) UL TUV
0.8 0.5 1.50 0.750 15.000
